Vector Addition::P4::Optimizing

1
#include <ATen/ATen.h>          // ATen: PyTorch Tensor library (like numpy)
2
#include <c10/cuda/CUDAGuard.h> // Ensures we're on the right GPU device
3
#include <c10/cuda/CUDAStream.h>// manages Cuda execution streams
4
#include <cuda_runtime.h>       // Core Cuda functionality
5
#include <torch/extension.h>    // Magic glue between C++ and Python
6

7
extern "C" void launch_add_kernel(const float *x, const float *y, float *out,
8
                                  int n, int blocks, int threads,
9
                                  cudaStream_t stream);
10

11
at::Tensor add_cuda(at::Tensor x, at::Tensor y) {
12
  TORCH_CHECK(x.sizes() == y.sizes(), "x and y must have the same shape")
13

14
  auto out = torch::empty_like(x);
15
  int64_t n_elements = x.numel();
16

17

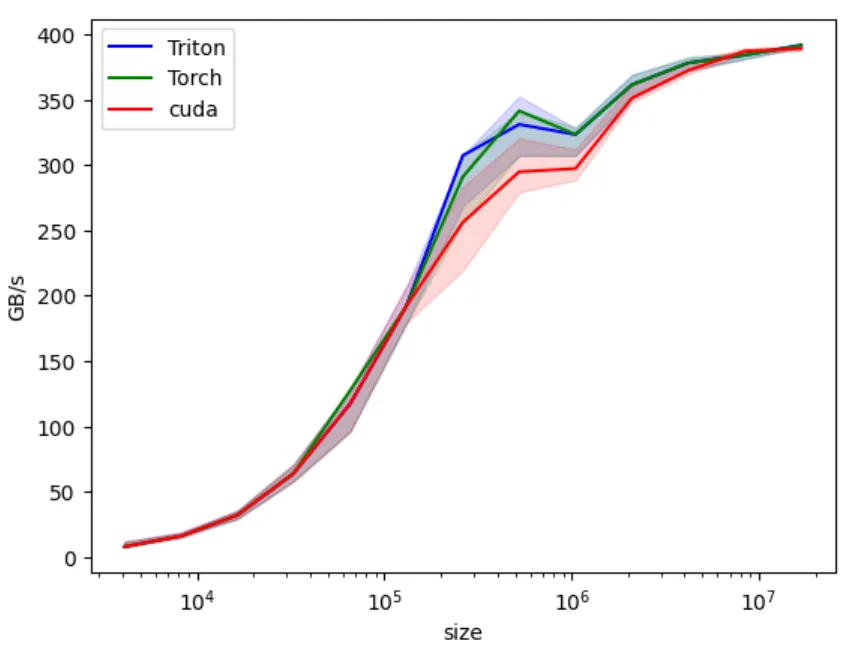

  const int threads = 64; // Threads per block (multiple of 32: warp friendly!)
18
  const int blocks = (int)((n_elements + threads - 1) / threads);
19

20
  const float *x_ptr = x.data_ptr<float>();
21
  const float *y_ptr = y.data_ptr<float>();
22
  float *out_ptr = out.data_ptr<float>();
23

24
  cudaStream_t stream = c10::cuda::getCurrentCUDAStream();
25
  launch_add_kernel(x_ptr, y_ptr, out_ptr, (int)n_elements,
26
                    blocks, threads, stream);
27
  return out;
28
}
29

30
/* PYBIND11_MODULE: This makes the function callable in Python
31
 * the 11 in the name means C++11 at minimum
32
 * Funny enough, there is no other numbers.
33
 *
34
 * TORCH_EXTENSION_NAME: Automatically set by Pytorch build system
35
 */
36
PYBIND11_MODULE(TORCH_EXTENSION_NAME, m){
37
  m.def("add_cuda", &add_cuda, "Vector add (CUDA)");
38
}

1
/**
2

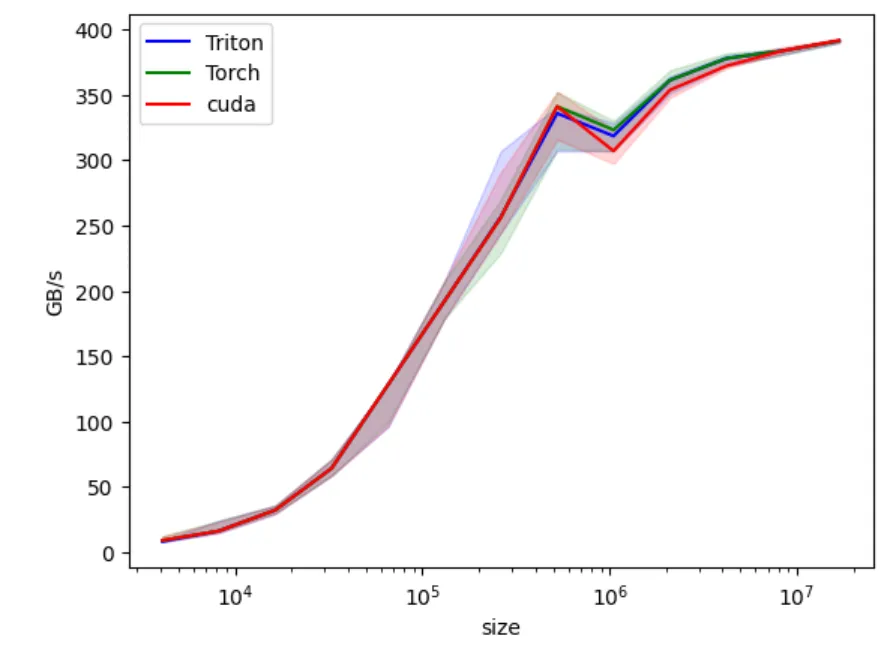

 * Vectorized CUDA kernel for element-wise vector addition using float4.
3
 *
4
 * Each thread processes 4 consecutive floats at once (16 bytes total).
5
 * This improves memory bandwidth utilization and reduces the number
6
 * of global memory transactions compared to the scalar version.
7
 */
8

9
__global__ void add_kernel_vec4(const float *__restrict__ x,
10
                                const float *__restrict__ y,
11
                                float *__restrict__ out,
12
                                int n) {
13

14
    // Compute the global index for this thread.
15
    // Each thread handles 4 elements, so multiply by 4.
16
    int idx = (blockIdx.x * blockDim.x + threadIdx.x) * 4;
17

18
    // Ensure we stay within array bounds.
19
    // "idx + 3 < n" because each thread touches elements [idx, idx+1, idx+2, idx+3].
20
    if (idx + 3 < n) {
21

22
        // Reinterpret the float* as a float4*.
23
        // This allows us to load 4 floats (16 bytes) in a single transaction.
24
        float4 a = reinterpret_cast<const float4*>(x)[idx / 4];
25
        float4 b = reinterpret_cast<const float4*>(y)[idx / 4];
26

27
        // Perform element-wise addition on the 4 packed floats.
28
        float4 c;
29
        c.x = a.x + b.x;
30
        c.y = a.y + b.y;
31
        c.z = a.z + b.z;
32
        c.w = a.w + b.w;
33

34
        // Store the result back to global memory as a single 16-byte store.
35
        reinterpret_cast<float4*>(out)[idx / 4] = c;
36
    }
37
}

1
    int threads = 64;
2
    int blocks = (n_elements/4 + threads - 1) / threads;

1
Time ───────────────────────────────────────────────▶
2

3
Thread 0: [LOAD x0,y0]──(wait 400 cycles)──[ADD]──[STORE]
4
Thread 1: [LOAD x1,y1]──(wait 400 cycles)──[ADD]──[STORE]
5
Thread 2: [LOAD x2,y2]──(wait 400 cycles)──[ADD]──[STORE]
6
...
7
Warp Scheduler: switches between warps, but most are waiting on memory

1
Time ─────────────────────────────────────────────────────────▶
2

3
Thread 0: [LOAD x0,y0][LOAD x4,y4][LOAD x8,y8] ... (pipeline full)
4
            ↑ while one load waits, next loads issued
5
Thread 1: [LOAD x1,y1][LOAD x5,y5][LOAD x9,y9] ...
6
Thread 2: [LOAD x2,y2][LOAD x6,y6][LOAD x10,y10] ...
7
...
8
Warp Scheduler: always finds ready warps (no idle gaps)

1
/**
2

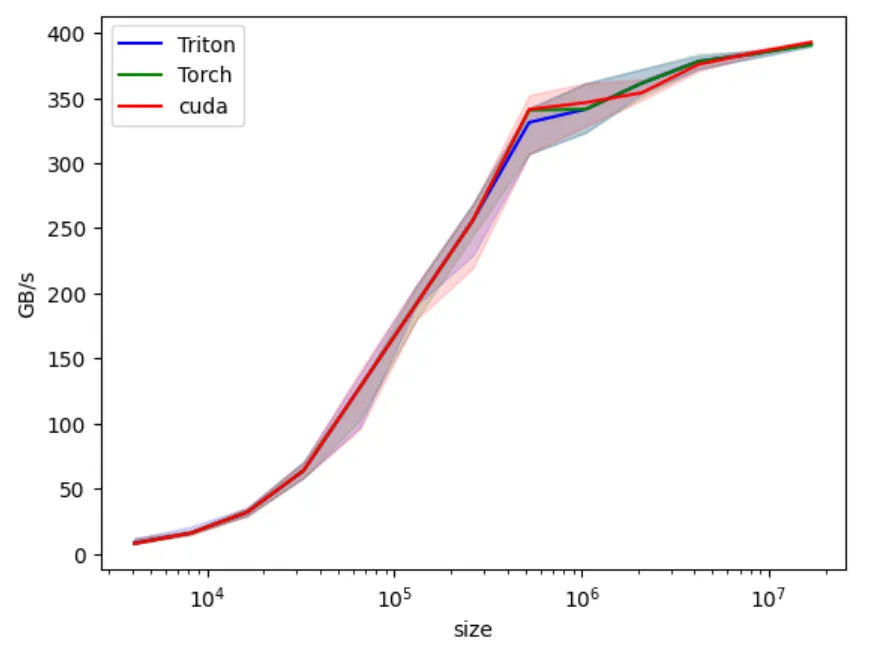

 * Vectorized grid-stride CUDA kernel for element-wise vector addition.
3
 *
4
 * Each thread now processes multiple float4 blocks (16 bytes each)
5
 * in a grid-stride loop.  This improves memory-latency hiding
6
 * and SM utilization, especially for mid-sized arrays.
7
 */
8
__global__ void add_kernel_vec4_looped(const float *__restrict__ x,
9
                                       const float *__restrict__ y,
10
                                       float *__restrict__ out,
11
                                       int n) {
12
    // Thread’s global linear index
13
    int tid = blockIdx.x * blockDim.x + threadIdx.x;
14
    // Total number of threads across the grid
15
    int stride = blockDim.x * gridDim.x;
16

17
    // Grid-stride loop: each iteration handles one float4 (4 floats)
18
    for (int i = tid * 4; i < n; i += stride * 4) {
19
        if (i + 3 < n) {
20
            // Vectorized 16-byte load
21
            float4 a = reinterpret_cast<const float4*>(x)[i / 4];
22
            float4 b = reinterpret_cast<const float4*>(y)[i / 4];
23

24
            // Compute
25
            float4 c;
26
            c.x = a.x + b.x;
27
            c.y = a.y + b.y;
28
            c.z = a.z + b.z;
29
            c.w = a.w + b.w;
30

31
            // Vectorized 16-byte store
32
            reinterpret_cast<float4*>(out)[i / 4] = c;
33
        }
34
    }
35
}
